100 Series
Alternator &
Starter Tester

Digital volt and ammeter.
Test selector switch for starter or alternator test position.
Uses a 12 volt battery (not included) continuously, recharged during alternator testing. (GM alternators above 1986 require battery for testing).
Duplicates the circuitry found in an automobile.
Switch activates load for testing alternator. Dual load pre-set at 40 and 80 amps.
Indicator light for IC alts.
Field circuit protection-10 amp. fuse breaker, push to reset.
A minus and B plus field circuits.
Full field switch.
Tests all American alternators starters; tests all foreign made with additional harness leads.
10 test leads for late models alternators.
2 step pulley (3" and serpentine).
Testing of 6-12-24-32 volts (optional).
5 HP, single Phase motor.
230 volt, 60 Hz motor.
Dimensions: 18" wide x 2 1 " high x 24" deep.
Shipping weight: 100 lbs.

Model K150D

FEATURES AND FUNCTIONS
This model is designed to function in a multitude of applications from auto parts jobbers & salvage yards to vocation and instructional institutions. The K150D tests both running alternators and starters with the same accuracy and performance you would expect to find in more expensive testers.

300 Series
Alternator,
Generator &
Starter Tester

Two, 4-1/2" meters: Voltmeter, 0-18-0-36 for testing operating voltage. D.C. ammeter dual scale 10-0-100/120 amp for testing alternators and 30-300 amp for testing free running starters.
One 3" D.C. ammeter 10-0-10 for testing field current.
Duplicates the circuitry found in an automobile.
Tests 6-12-24 volt.
A or B circuit.
Motor reverse switch.
Heavy duty field rheostat, controls alternator and generator output.
Field circuit protection-10 amp fuse breaker, push to reset.
Indicator light for testing Delcotron and other units using diode trios
External voltmeter switch for checking alternator and regulator tabs.
Heavy duty mounting vise. Enables fast mounting and removal.
Three step pulley (3", 4", & serpentine) for low and high speed operation.
Variable load control. High 80 amps, low 40 amps.
Shipping weight: 200 lbs.
Dimensions: 24" wide x 22-1/2" high x 32" deep.

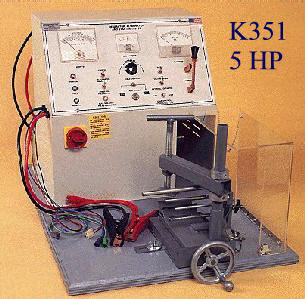

Model K351

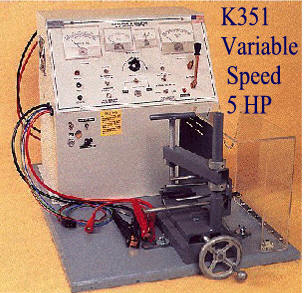

Model K351V

Model K351V Specifications:

For general specifications see the 300 Series model.

D.C. ammeter dual scale
15-0-150 amp for testing alternators and 30-0-300 amp for testing free running starters.
R.P.M meter 0-7000 R.P.M

Electronic speed control.
Thre preset loads of 40, 80, and 120 amps.
Universal harness adapter.
(with the 27 most commonly used test leads.)

OTHER MODEL SPECIFICATIONS

K300:	Designed for medium duty testing. Tests up to 100 amp alternators with no motor load down. 3 HP single Phase motor, 3500 RPM, 230 volt AC.
K351:	Designed for heavy duty testing, small to large shops. 5 HP single Phase, 230 volt AC Tests alternators up to 120 amps.
K351D:	Same as K351 but with digital meters.
K351V:	Same as K351 but with variable speed.
K353:	Same as K351 but with 5 HP, 5 HP, 3 Phase motor.
K373:	Same as K350 but with 7.5 HP, 3 Phase motor.

**The 400 "TOUGH GUY" Series**
Alternator, Generator and Starter Tester VARIABLE SPEED 7.5 HP, 230VAC, single or three phase motor. Electronic Variable Speed (3) Digital Meters to measure voltage, current and RPM (1) Analog ammeter 10-0-10 for testing field current. Duplicate automotive circuitry Test 12 and 24 volts with built-in selector switch. A or B field circuit capable. Motor reverse switch HD Field Rheostat. Field circuit protection, 10 Amp fuse breaker. Indicator light for testing units using diode trio. External voltmeter switch. Manual mounting vise. Three step pulley (3",4"and serpentine). 6 preset loads, fan cooled. 28 test leads included 12 month warranty Dimentions: 24"W x 28"H x 48"D. Shipping weight: 250LBS.	Model K-475DV The K-475V has been specially designed for light car to heavy duty truck applications. This 7.5 HP Tester has 6 preset loads to test for maximum performance. An electronic variable speed control allows testing at any RPM level from 0-6000. The use of digital meters increases accuracy and makes it easy for the operator to read.

K-450D
The K-450D has been specially designed for light car to heavy-duty truck applications. This 5 HP Tester has 6 preset loads to test for maximum performance. The use of digital meters increases accuracy and makes it easy for the operator to read. 5 HP, 230 VAC single or three phases motor (2) Two digital meters to measure voltage and current. (1) Analog meter 10-0-10 for testing field current Duplicate automotive circuitry Test 12 and 24 volts with built in selector switch A or B field circuit capable Motor reverse switch HD Field rheostat Field circuit protection 10 Amp fuse breaker Indicator light for testing units using diode trio External voltmeter switch Manual mounting vise Three step pulley (3", 4", and serpentine) 6 preset loads, fan cooled 28 test leads included 12 month warranty Dimensions: 24"W x 28"H x 48"D Shipping Weight: 250 lbs.	Model K-450D

500 Series
Free Running Starter Tester

12, 24, 32 volt, heavy duty production tester for automotive and diesel starters, with or without solenoids. Requires 120/240 volt, AC current, 60 Hz.

**K500: K524:**
Two 3" meters: Shows voltage drop during cranking, 0-15 volts. Shows cranking current, 0-300 amps. Easy to operate vise for rapid loading and unloading of starter. Ignition "R" test light. 12 volt DC, 300 amp. 115 volt AC, 60 Hz. Shipping weight: 50 lbs. 18" wide x 12" high x 24" deep	Dual 4-1/2" amp & volt meter 0-50 volts and 0-500 amps. Heavy duty transformer. Heavy duty silicon rectifiers. 12-24-32 volt DC, 500 amp. 230 volt AC, 60Hz. Shipping Weight: 80 lbs. 24" wide x 20" high x 32" deep K532: Same as K524 except: 12-24-32 volt DC, 500 amp Shipping Weight: 110 lbs.

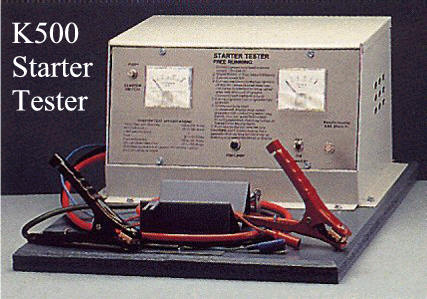

Model K500

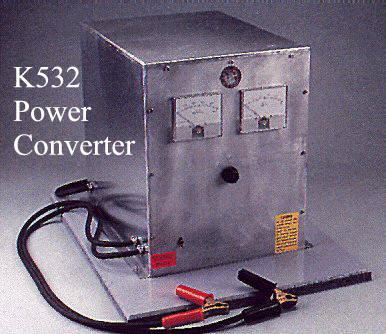

Model K532

700 Series

Six 4-1/2" meters: Two voltmeters, displays operating voltage, 0-50 volts & displays stator output or additional voltage reading, 0-25 volts.
Two ammeters, displays operating output amperage, dual scale l0-0-150/30-0-300 & displays field current 10-0-10.
One ripple voltage meter.
One diode trio condition meter.
Variable speed control from 0-6000 RPM. Changes in RPM can be made in 5 seconds.
Selector switch offers 6, 12, or 24 volt operation. (32 volt is optional.)
A and B field circuit.
Field circuit protection-10 amp fuse breaker, push to reset.
No charge indicator light for IC regulator alternator.
Motor rotation, forward and
reverse, switch operated.
Four fixed loads, 30-60-90-120 amps. Switch operated.
Air vise.
Tachometer.
Heavy duty metal cabinet with
textured finish (Optional).
Heavy duty cooling fan.
Three step pulley: 3", 4", and
serpentine.
Fan belt and pulley guard.
Twenty-seven most popular,
quick connect adapters with
convenient mounting rack.
Heavy duty stand optional.
Shipping weight: 350 lbs. with stand: 50 lbs.
Dimensions: 39-1/2" wide x 31"
high X 48" deep; with stand: 40"
wide x 58" high x 49" deep.

Model K700V

K700V:	5 HP, single or 3 Phase motor.
K700DV:	Same as K700V but with 5 digital meters.
K700SV:	Same as K700V but with light duty, free running starter testing capabilities.
K705:	Same as K700V without variable speed.
K707V:	7-1/2 HP single or 3 Phase with load capabilities of 20-40/60-80/100-120. Most special load requirements available upon request. 32 volt standard. Heavy duty vise. Standard heavy-duty stand.
K707DV:	Same as K707V but with 5 digital meters. Standard heavy-duty stand

K-720D
Alternator Tester 20HP

4 Digital meters; 2 voltmeters displays operating voltage & stator output additional voltage reading; 2 ammeters displays operating output amperage and field current.
One 4 ½” diode trio condition meter.
One 4 ½” ripple voltage meter.
Bright red indicator light displays ON or OFF mode.
Selector switch offers 12 or 24 volt operation.
A and B field circuit.
Field circuit protection 10 and 20 amp fuse breaker, push to reset.
No charge indicator light for IC regulator alternator.
Motor rotation forward and reverse, switch operated.
10 fixed loads. As customer request up to 250 Amps. Switch operated.
Manual vise, heavy duty to accommodate any size alternator.
Heavy-duty metal cabinet with texture finishes.
Two 10” cooling fans.
Heavy duty test stand.
30 most popular quick connects adapters.
20 Hp motor 3Ph. 208-230/460 VAC.
Dimensions: 40” wide x 58” high x 49” deep.
Shipping weight 550 lbs.

K-720DV
Alternator tester 20HP. Variable Speed.

4 Digital meters; 2 voltmeters displays operating voltage & stator output additional voltage reading; 2 ammeters displays operating output amperage and field current.
One 4 ½” diode trio condition meter.
One 4 ½” ripple voltage meter.
R.P.M. meter digital
Bright red indicator light displays ON or OFF mode.
Selector switch offers 12 or 24 volt operation.
A and B field circuit.
Field circuit protection 10 and 20 amp fuse breaker, push to reset.
No charge indicator light for IC regulator alternator.
Motor rotation CW or CCW, is reversed trough a power inverter, from 0-6000 RPM in 7 seconds. RPM could be modified as customer request.
10 fixed loads. As customer request up to 250 Amps. Switch operated.
Manual vise, heavy duty to accommodate any size alternator.
Heavy-duty metal cabinet with texture finishes.
Two 10” cooling fans.
Heavy duty test stand.
30 most popular quick connects adapters.
20 Hp motor 3Ph. 208-230/460 VAC.
20 Hp inverter 208-230/460 VAC 3 Ph.
Dimensions: 40” wide x 58” high x 49” deep.
Shipping weight 650 lbs.

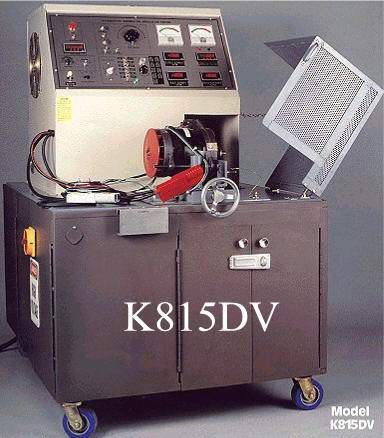

800 Series

*Seven meters:
     Two digital voltmeters:
     One shows operating voltage.
     One add'l voltage sensor (stator, electronics, etc.).      (The reading is accurate to one tenth of a volt.)

     Two digital ammeters:
     One shows output amperage.
     One shows rotor draw on non-integral units.

     One digital R.P.M. meter.
     One 4-1/2" diode trio condition meter.
     One 4-1/2" ripple voltage meter.

Tests 6, 12, 24, 30, and 32 volt units without changing batteries.
Resistor bank adjustable from 0-300 amps at 12 volts with load capability of one hour minimum without overheating or deterioration (Load setting may be customized as per customer's request).
Load timer 0-60 minutes with indicator On or Off lights.
A and B field circuit switch, tests alternator / generator field system (+ or-).
The Motor direction, CW or CCW, is reversed through a power inverter, from 0-6000 RPM in 6 seconds.
Two field current selector switches, high and low, with fuse protector 10 & 20 amps.
Heavy duty field rheostat, 300 watts.

3 step pulley, (3", 4", and serpentine. Other sizes available at no extra charge.)
Heavy duty manual vise will accommodate any type alternator.
Bright red indicator light displays On or Off Mode.
Idiot lamp for integral type alternators.
Heavy duty hook up leads and clamps.
All type of hook up leads for foreign and domestic alternators.
Easy service design cabinet.
